 VAWT-DS Series |
|
Product |
300W |
1.5kW |
3kW |
5kW |
10kW |
Dimension(m) |
A |
1.24 |
2.8 |
4.0 |
5.5 |
7.0 |
B |
1.0 |
3.2 |
4.5 |
6.2 |
7.7 |
Generator |
Direct Drive, Coreless PMG, Out rotor type |
Converter/Inverter |
Stand alone battery storage system |
Dynamic grid connected system |
Cut in WS |
<3m/s |
Cut out WS |
15m/s |
Rated WS |
12m/s |
Survival WS |
60m/s |
|
|
| VATW-Hybrid Street Lamp System |
|
Components/ Model Name |
300W85P24L5500 |
300W170P24L5500 |
300W85P36L5500 |
300W170P36L5500 |
Usage |
High wind
(>5m/s) model |
Low wind
(<3m/s) model |
High wind
(>5m/s) model |
Low wind
(<3m/s) model |
Wind Turbine |
DS300+Wind-pv hybrid controller |
LED lamp |
24W LED |
24W LED |
36W LED |
36W LED |
PV panel |
85W x 1 |
85W x 2 |
85W x 1 |
85W x 2 |
Lamp Height |
About 5500mm |
Total Height |
About 6650mm(including wind turbine) |
Battery |
12V46Ah environmentally-friendly Silicon Power Battery x 3
Or
12v50Ah Deep Cycle Lead-Acid Batter x 3 |
|
|
| EXPECT EFFICIENCY |
|
- The estimated generates per year (3000W * 0.2 * 24hr * 30ÀÏ *12 = 5,184kW)
- Economy of CO2 ( 184 * 0.424kg = 2,198kg )
|
|
| Patent |
|
Patent Item |
Patent type |
TWN |
China |
Japan |
Wind Rotor(1) |
New Style |
D115854 |
|
|
Wind Rotor(2) |
New Style |
D115855 |
|
|
Clutch |
New Type |
M288334 |
|
|
Optimem Ratio of Savonius & Darrieus |
Invention |
9417850 |
|
|
Double Axis Structure VAWT |
New Type |
M310950 |
2006201607
85.X |
÷åêÃ2006-
266733 |
Appropriate Generator |
New Type |
M312834 |
|
|
Out-rotor Generator |
New Type |
96210000 |
|
|
Special Dumper |
New Type |
Applying |
Applying |
|
|
|

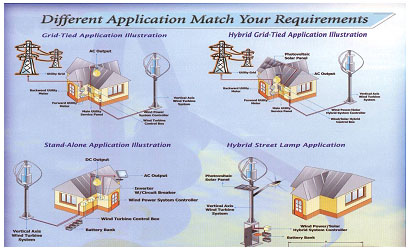

| Different Application |
|
- Grid-Tied Application Illustration
- Hybrid Grid-Tied Application Illustration
- Stand-Alone Application Illustration

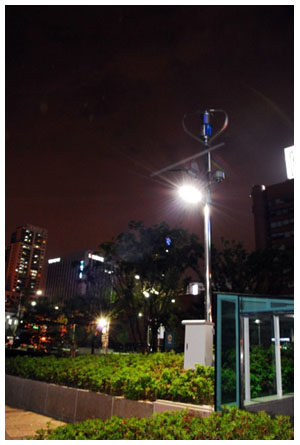

- Hybrid Street Lamp Application
|
|
| Manufacturer |
|
- Hi Energy Techology Co., Ltd.
|
|
| Result of Installation |
|
|
Hybrid Street Lamp |
DS300 |
DS1500 |
DS3000 |
Taiwan |
56 |
86 |
41 |
13 |
China |
862 |
610 |
3 |
20 |
Hong Kong |
2 |
0 |
1 |
0 |
India |
3 |
6 |
0 |
13 |
Singapore |
0 |
1 |
0 |
0 |
Vietnam |
1 |
0 |
0 |
0 |
Japan |
4 |
4 |
0 |
12 |
New Zealand |
3 |
6 |
0 |
0 |
Australia |
1 |
3 |
0 |
10 |
German |
2 |
2 |
0 |
3 |
UK |
4 |
2 |
2 |
2 |
Ireland |
6 |
2 |
0 |
12 |
USA |
6 |
12 |
2 |
3 |
Total Quantity |
960 sets |
734 sets |
49 sets |
78 sets |
|
|

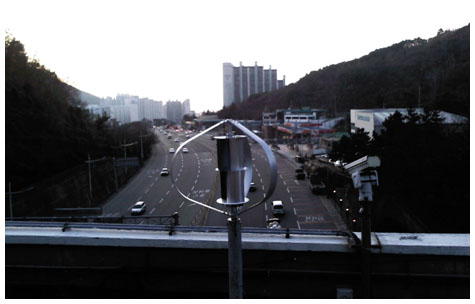

| Domestic example of installation |
|
- Songpa-Gu Office
- Busan manduk Tunnel

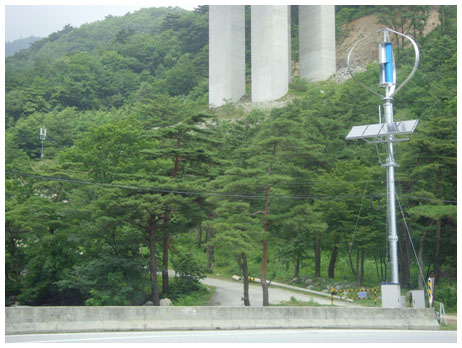

- Daegwallyeong SK
|
|

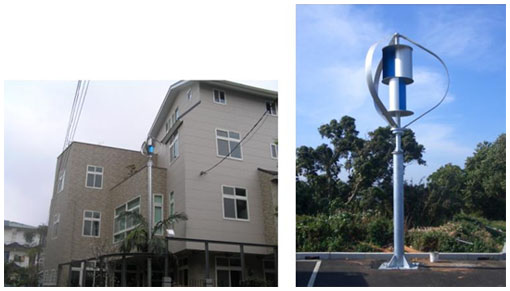

| Overseas example of Installation |
|
|
|
